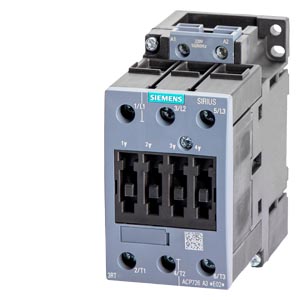

    Siemens 3RT5035-1AG20 коммутационное устройство

    Siemens 3RT5035-1AG20 коммутационное устройство

    КОНТАКТОР, 3-ПОЛ., 18.5КВТ/АС3/400В, БЛОК-КОНТАКТЫ 1НО+1НЗ, НОМИНАЛЬНОЕ ПИТАЮЩЕЕ НАПРЯЖЕНИЕ ЦЕПИ УПРАВЛЕНИЯ US 110В АС 50/60ГЦ, ТИПОРАЗМЕР S2, ВИНТОВЫЕ КЛЕММЫ

    Купить 3RT50351AG20 в один клик mdi-cart-outline В корзину

    mdi-warehouse Наличие: под заказ

    Цена: по запросу

    Технические характеристики 3RT50351AG20

    Contactor AC 110 V 50/60 HZ AC3 18,5 kW 400 V 3 pole, mod. S2 screw terminal
    product brand name SIRIUS
    product designation Power contactor
    product type designation 3RT5
    General technical data
    size of contactor S2
    product extension auxiliary switch Yes
    power loss [W] for rated value of the current
    ● at AC in hot operating state per pole 2.6 W
    ● without load current share typical 5.25 W
    type of calculation of power loss current-dependent quadratic
    insulation voltage rated value 690 V
    degree of pollution 3
    surge voltage resistance rated value 6 kV
    maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 400 V
    shock resistance at rectangular impulse
    ● at AC 10 g / 5 ms, 5 g / 10 ms
    shock resistance with sine pulse
    ● at AC 15 g / 5 ms, 8 g / 10 ms
    mechanical service life (operating cycles)
    ● of contactor typical 10 000 000
    ● of the contactor with added auxiliary switch block typical 10 000 000
    Substance Prohibitance (Date) 03/01/2017
    SVHC substance name
    Lead CAS-No. 7439-92-1
    Net Weight 0.84 kg
    Ambient conditions
    installation altitude at height above sea level maximum 2 000 m
    ambient temperature
    ● during operation -25 ... +60 °C
    ● during storage -55 ... +80 °C
    Main circuit
    number of poles for main current circuit 3
    number of NO contacts for main contacts 3
    number of NC contacts for main contacts 0
    operating voltage
    ● at AC-3 rated value maximum 690 V
    ● at AC-3e rated value maximum 690 V
    operational current
    ● at AC-1 up to 690 V
    — at ambient temperature 40 °C rated value 60 A
    — at ambient temperature 60 °C rated value 55 A
    ● at AC-3
    — at 400 V rated value 40 A
    — at 690 V rated value 24 A
    ● at AC-3e
    — at 400 V rated value 40 A
    — at 690 V rated value 24 A
    connectable conductor cross-section in main circuit at AC-1
    ● at 60 °C minimum permissible 16 mm²
    ● at 40 °C minimum permissible 16 mm²
    operational current for approx. 200000 operating cycles at AC-4
    ● at 400 V rated value 18.5 A
    ● at 690 V rated value 12.6 A
    operating power
    ● at AC-1
    — at 230 V at 60 °C rated value 22 kW
    — at 400 V at 60 °C rated value 38 kW
    — at 690 V at 60 °C rated value 66 kW
    ● at AC-3
    — at 230 V rated value 11 kW
    — at 400 V rated value 18.5 kW
    — at 500 V rated value 22 kW
    — at 690 V rated value 22 kW
    ● at AC-3e
    — at 230 V rated value 11 kW
    — at 400 V rated value 18.5 kW
    — at 500 V rated value 22 kW
    — at 690 V rated value 22 kW
    operating power for approx. 200000 operating cycles at AC-4
    ● at 400 V rated value 9.5 kW
    ● at 690 V rated value 11.4 kW
    no-load switching frequency
    ● at AC 5 000 1/h
    operating frequency
    ● at AC-1 maximum 1 200 1/h
    ● at AC-3 maximum 1 000 1/h
    ● at AC-3e maximum 1 000 1/h
    ● at AC-4 maximum 300 1/h
    Control circuit/ Control
    type of voltage of the control supply voltage AC
    control supply voltage at AC
    ● at 50 Hz rated value 110 V
    ● at 60 Hz rated value 110 V
    operating range factor control supply voltage rated value of magnet coil at AC
    ● at 50 Hz 0.8 ... 1.1
    ● at 60 Hz 0.85 ... 1.1
    apparent pick-up power of magnet coil at AC
    ● at 50 Hz 170 VA
    ● at 60 Hz 170 VA
    inductive power factor with closing power of the coil
    ● at 50 Hz 0.76
    ● at 60 Hz 0.76
    apparent holding power of magnet coil at AC
    ● at 50 Hz 15 VA
    ● at 60 Hz 15 VA
    inductive power factor with the holding power of the coil
    ● at 50 Hz 0.35
    ● at 60 Hz 0.35
    Auxiliary circuit
    number of NC contacts for auxiliary contacts instantaneous contact 0
    number of NO contacts for auxiliary contacts instantaneous contact 0
    operational current at AC-12 maximum 10 A
    operational current at AC-15
    ● at 230 V rated value 6 A
    ● at 400 V rated value 3 A
    operational current at DC-12
    ● at 110 V rated value 3 A
    ● at 220 V rated value 1 A
    operational current at DC-13
    ● at 24 V rated value 6 A
    ● at 110 V rated value 1 A
    ● at 220 V rated value 0.3 A
    contact reliability of auxiliary contacts 1 faulty switching per 100 million (17 V, 1 mA)
    UL/CSA ratings
    yielded mechanical performance [hp] for 3-phase AC motor at 460/480 V rated value 30 hp
    Short-circuit protection
    design of the fuse link
    ● for short-circuit protection of the main circuit
    — with type of coordination 1 required fuse gL/gG: 125 A
    — with type of coordination 2 required fuse gL/gG: 63 A
    ● for short-circuit protection of the auxiliary switch required fuse gL/gG: 10 A
    Installation/ mounting/ dimensions
    mounting position +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
    fastening method side-by-side mounting Yes
    fastening method screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
    height 112 mm
    width 55 mm
    depth 115 mm
    Connections/ Terminals
    type of electrical connection
    ● for main current circuit screw-type terminals
    ● for auxiliary and control circuit screw-type terminals
    type of connectable conductor cross-sections for main contacts
    ● solid or stranded 2x (0.75 ... 16 mm²)
    ● finely stranded with core end processing 2x (0.75 ... 16 mm²)
    ● finely stranded without core end processing 2x (0.75 ... 16 mm²)
    type of connectable conductor cross-sections
    ● for auxiliary contacts
    — finely stranded with core end processing 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
    ● for AWG cables for auxiliary contacts 2x (20 ... 16), 2x (18 ... 14), 1x 12
    Safety related data
    product function mirror contact according to IEC 60947-4-1 Yes
    Electrical Safety
    protection class IP on the front according to IEC 60529 IP20
    touch protection on the front according to IEC 60529 finger-safe, for vertical contact from the front
    Approvals Certificates
    General Product Approval Maritime application other
    other Environment
    Further information
    3RT5035-1AG20
    3RT5035-1AG20
    3RT5035-1AG20
    last modified: 4/4/2026
    Date
    4/8/2026
    Subject to change without notice
    © Copyright Siemens 2026
