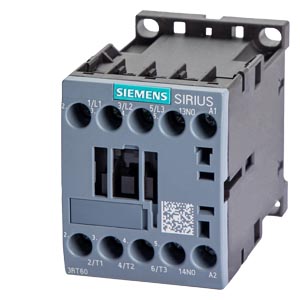

Siemens 3RT6016-1AF01 коммутационное устройство

Name: Siemens 3RT6016-1AF01 коммутационное устройство
Brand: Siemens
Availability: InStock

КОНТАКТОР, 3 ПОЛ., AC-3, 4КВТ/400В, БЛОК-КОНТАКТ 1НО, НОМ. НАПРЯЖЕНИЕ УПРАВЛЕНИЯ 110В АС, 50/60 ГЦ, ТИПОРАЗМЕР S00, ВИНТОВЫЕ КЛЕММЫ

Купить 3RT60161AF01 в один клик

mdi-cart-outline В корзину

mdi-warehouse Наличие: под заказ

Цена: по запросу

Технические характеристики 3RT60161AF01

Contactor AC 110 V 50/60 HZ AC3 4 kW 400 V AUX contacts: 1 NO 3-pole, size S00 screw terminal

product brand name

SIRIUS

product designation

Power contactor

product type designation

3RT6

General technical data

size of contactor

S00

product extension auxiliary switch

Yes

power loss [W] for rated value of the current

● at AC in hot operating state per pole

0.7 W

● without load current share typical

1.05 W

type of calculation of power loss current-dependent

quadratic

insulation voltage rated value

690 V

degree of pollution

surge voltage resistance rated value

6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1

400 V

shock resistance at rectangular impulse

● at AC

6,7 g / 5 ms, 4,2 g / 10 ms

shock resistance with sine pulse

● at AC

10,5 g / 5 ms, 6,6 g / 10 ms

mechanical service life (operating cycles)

● of contactor typical

30 000 000

● of the contactor with added auxiliary switch block typical

10 000 000

Substance Prohibitance (Date)

05/01/2012

Net Weight

0.22 kg

Ambient conditions

installation altitude at height above sea level maximum

2 000 m

ambient temperature

● during operation

-25 ... +60 °C

● during storage

-55 ... +80 °C

Main circuit

number of poles for main current circuit

number of NO contacts for main contacts

number of NC contacts for main contacts

operating voltage

● at AC-3 rated value maximum

690 V

● at AC-3e rated value maximum

690 V

operational current

● at AC-1 up to 690 V

— at ambient temperature 40 °C rated value

22 A

— at ambient temperature 60 °C rated value

20 A

● at AC-3

— at 400 V rated value

9 A

— at 690 V rated value

6.7 A

● at AC-3e

— at 400 V rated value

9 A

— at 690 V rated value

6.7 A

connectable conductor cross-section in main circuit at AC-1

● at 60 °C minimum permissible

2.5 mm²

● at 40 °C minimum permissible

4 mm²

operational current for approx. 200000 operating cycles at AC-4

● at 400 V rated value

4.1 A

● at 690 V rated value

3.3 A

operating power

● at AC-1

— at 230 V rated value

7.5 kW

— at 230 V at 60 °C rated value

7.5 kW

— at 400 V at 60 °C rated value

13 kW

— at 690 V at 60 °C rated value

22 kW

● at AC-3

— at 230 V rated value

2.2 kW

— at 400 V rated value

4 kW

— at 690 V rated value

5.5 kW

● at AC-3e

— at 230 V rated value

2.2 kW

— at 400 V rated value

4 kW

— at 690 V rated value

5.5 kW

operating power for approx. 200000 operating cycles at AC-4

● at 400 V rated value

2 kW

● at 690 V rated value

2.5 kW

no-load switching frequency

● at AC

10 000 1/h

operating frequency

● at AC-1 maximum

1 000 1/h

● at AC-3 maximum

750 1/h

● at AC-3e maximum

750 1/h

● at AC-4 maximum

250 1/h

Control circuit/ Control

type of voltage of the control supply voltage

control supply voltage at AC

● at 50 Hz rated value

110 V

● at 60 Hz rated value

110 V

operating range factor control supply voltage rated value of magnet coil at AC

● at 50 Hz

0.8 ... 1.1

● at 60 Hz

0.85 ... 1.1

apparent pick-up power of magnet coil at AC

● at 50 Hz

27 VA

● at 60 Hz

31.7 VA

inductive power factor with closing power of the coil

● at 50 Hz

0.8

● at 60 Hz

0.81

apparent holding power of magnet coil at AC

● at 50 Hz

4.2 VA

● at 60 Hz

4.8 VA

inductive power factor with the holding power of the coil

● at 50 Hz

0.25

● at 60 Hz

0.25

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact

number of NO contacts for auxiliary contacts instantaneous contact

operational current at AC-12 maximum

10 A

operational current at AC-15

● at 230 V rated value

10 A

● at 400 V rated value

3 A

● at 690 V rated value

1 A

operational current at DC-12

● at 24 V rated value

6 A

● at 110 V rated value

3 A

● at 220 V rated value

1 A

operational current at DC-13

● at 24 V rated value

6 A

● at 110 V rated value

1 A

● at 220 V rated value

0.3 A

contact reliability of auxiliary contacts

1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

yielded mechanical performance [hp] for 3-phase AC motor at 460/480 V rated value

5 hp

Short-circuit protection

design of the fuse link

● for short-circuit protection of the main circuit

— with type of coordination 1 required

gL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 35 A

— with type of coordination 2 required

gL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 20 A

● for short-circuit protection of the auxiliary switch required

fuse gL/gG: 10 A

Installation/ mounting/ dimensions

mounting position

+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mounting

Yes

fastening method

screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

height

57.5 mm

width

45 mm

depth

73 mm

required spacing

● with side-by-side mounting

— at the side

0 mm

Connections/ Terminals

type of electrical connection

● for main current circuit

screw-type terminals

● for auxiliary and control circuit

screw-type terminals

type of connectable conductor cross-sections for main contacts

● solid or stranded

2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²

● finely stranded with core end processing

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

type of connectable conductor cross-sections

● for auxiliary contacts

— solid or stranded

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— finely stranded with core end processing

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

● for AWG cables for auxiliary contacts

2x (20 ... 16), 2x (18 ... 14), 2x 12

Safety related data

product function mirror contact according to IEC 60947-4-1

Yes

Electrical Safety

protection class IP on the front according to IEC 60529

IP20

touch protection on the front according to IEC 60529

finger-safe, for vertical contact from the front

Approvals Certificates

General Product Approval			Maritime application
		Confirmation	CCS (China Classification Society)
other	Environment
Confirmation	Environmental Confirmations
