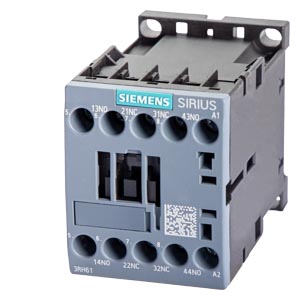

Siemens 3RH6131-1AF00 коммутационное устройство

Name: Siemens 3RH6131-1AF00 коммутационное устройство
Brand: Siemens
Availability: InStock

ВСПОМОГАТЕЛЬНЫЙ КОНТАКТОР, 3НО+1НЗ, НОМИНАЛЬНОЕ ПИТАЮЩЕЕ НАПРЯЖЕНИЕ ЦЕПИ УПРАВЛЕНИЯ US AC 110V, 50/60 ГЦ, ТИПОРАЗМЕР S00, ВИНТОВЫЕ КЛЕММЫ

Купить 3RH61311AF00 в один клик

mdi-cart-outline В корзину

mdi-warehouse Наличие: под заказ

Цена: по запросу

Технические характеристики 3RH61311AF00

Contactor relay, 3 NO + 1 NC, AC 110 V, 50/60 Hz, size S00, screw terminal

product brand name

SIRIUS

product designation

Contactor relay

product type designation

3RH6

General technical data

size of contactor

S00

product extension auxiliary switch

Yes

power loss [W] for rated value of the current without load current share typical

1.05 W

insulation voltage with degree of pollution 3 at AC rated value

690 V

surge voltage resistance rated value

6 kV

shock resistance at rectangular impulse

● at AC

7,3 g / 5 ms, 4,7 g / 10 ms

shock resistance with sine pulse

● at AC

11,4 g / 5 ms, 7,3 g / 10 ms

mechanical service life (operating cycles)

● of contactor typical

30 000 000

● of the contactor with added auxiliary switch block typical

10 000 000

Substance Prohibitance (Date)

05/01/2012

Net Weight

0.22 kg

Ambient conditions

installation altitude at height above sea level maximum

2 000 m

ambient temperature

● during operation

-25 ... +60 °C

● during storage

-55 ... +80 °C

Main circuit

no-load switching frequency

● at AC

10 000 1/h

● at DC

10 000 1/h

Control circuit/ Control

type of voltage of the control supply voltage

control supply voltage at AC

● at 50 Hz rated value

110 V

● at 60 Hz rated value

110 V

operating range factor control supply voltage rated value of magnet coil at AC

● at 50 Hz

0.8 ... 1.1

● at 60 Hz

0.85 ... 1.1

apparent pick-up power of magnet coil at AC

37 VA

inductive power factor with closing power of the coil

0.8

apparent holding power of magnet coil at AC

5.7 VA

inductive power factor with the holding power of the coil

0.25

Auxiliary circuit

number of NC contacts for auxiliary contacts

number of NO contacts for auxiliary contacts

identification number and letter for switching elements

31 E

operational current at AC-12 maximum

6 A

operational current at AC-15

● at 230 V rated value

10 A

● at 400 V rated value

3 A

● at 690 V rated value

1 A

operational current at 1 current path at DC-12

● at 24 V rated value

6 A

● at 110 V rated value

3 A

● at 220 V rated value

1 A

operational current with 2 current paths in series at DC-12

● at 24 V rated value

6 A

● at 110 V rated value

4 A

● at 220 V rated value

2 A

operational current with 3 current paths in series at DC-12

● at 24 V rated value

6 A

● at 110 V rated value

6 A

● at 220 V rated value

3.6 A

operating frequency at DC-12 maximum

1 000 1/h

operational current at 1 current path at DC-13

● at 24 V rated value

6 A

● at 110 V rated value

1 A

● at 220 V rated value

0.3 A

operational current with 2 current paths in series at DC-13

● at 24 V rated value

6 A

● at 110 V rated value

1.3 A

● at 220 V rated value

0.9 A

operational current with 3 current paths in series at DC-13

● at 24 V rated value

6 A

● at 110 V rated value

3 A

● at 220 V rated value

1.2 A

operating frequency at DC-13 maximum

1 000 1/h

contact reliability of auxiliary contacts

1 faulty switching per 100 million (17 V, 1 mA)

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V

C characteristic: 6 A; 0.4 kA

design of the fuse link for short-circuit protection of the auxiliary switch required

fuse gL/gG: 10 A

Installation/ mounting/ dimensions

mounting position

+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method

screw and snap-on mounting onto 35 mm DIN rail

height

57.5 mm

width

45 mm

depth

73 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuit

screw-type terminals

type of connectable conductor cross-sections

● for auxiliary contacts

— solid or stranded

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— finely stranded with core end processing

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

● for AWG cables for auxiliary contacts

2x (20 ... 16), 2x (18 ... 14), 2x 12

Safety related data

product function positively driven operation according to IEC 60947-5-1

Yes

Electrical Safety

protection class IP on the front according to IEC 60529

IP20

touch protection on the front according to IEC 60529

finger-safe, for vertical contact from the front

Approvals Certificates

General Product Approval		Maritime application	other
	Confirmation	CCS (China Classification Society)	Confirmation
Environment
Environmental Confirmations

Further information

last modified:

4/4/2026

Date
4/6/2026
