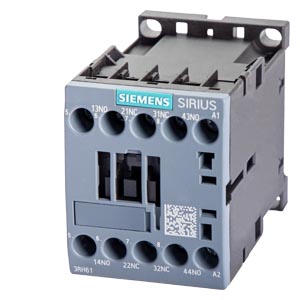

    Siemens 3RH6131-1BB40 коммутационное устройство

    Siemens 3RH6131-1BB40 коммутационное устройство

    ВСПОМОГАТЕЛЬНЫЙ КОНТАКТОР, 3НО+1НЗ, НОМИНАЛЬНОЕ ПИТАЮЩЕЕ НАПРЯЖЕНИЕ ЦЕПИ УПРАВЛЕНИЯ US НОМИНАЛЬНОЕ НАПРЯЖЕНИЕ ЦЕПИ УПРАВЛЕНИЯ 24В DC, ТИПОРАЗМЕР S00, ВИНТОВЫЕ КЛЕММЫ

    Купить 3RH61311BB40 в один клик mdi-cart-outline В корзину

    mdi-warehouse Наличие: под заказ

    mdi-cash-multiple 3554 руб.

    Технические характеристики 3RH61311BB40

    Contactor relay, 3 NO + 1 NC, DC 24 V, size S00, screw terminal
    product brand name SIRIUS
    product designation Contactor relay
    product type designation 3RH6
    General technical data
    size of contactor S00
    product extension auxiliary switch Yes
    power loss [W] for rated value of the current without load current share typical 4 W
    insulation voltage with degree of pollution 3 at AC rated value 690 V
    surge voltage resistance rated value 6 kV
    shock resistance at rectangular impulse
    ● at DC 10 g / 5 ms, 5 g / 10 ms
    shock resistance with sine pulse
    ● at DC 15 g / 5 ms, 8 g / 10 ms
    mechanical service life (operating cycles)
    ● of contactor typical 30 000 000
    ● of the contactor with added auxiliary switch block typical 10 000 000
    Substance Prohibitance (Date) 05/01/2012
    Net Weight 0.28 kg
    Ambient conditions
    installation altitude at height above sea level maximum 2 000 m
    ambient temperature
    ● during operation -25 ... +60 °C
    ● during storage -55 ... +80 °C
    Main circuit
    no-load switching frequency
    ● at AC 10 000 1/h
    ● at DC 10 000 1/h
    Control circuit/ Control
    type of voltage of the control supply voltage DC
    control supply voltage at DC rated value 24 V
    closing power of magnet coil at DC 4 W
    holding power of magnet coil at DC 4 W
    Auxiliary circuit
    number of NC contacts for auxiliary contacts 1
    number of NO contacts for auxiliary contacts 3
    identification number and letter for switching elements 31 E
    operational current at AC-12 maximum 6 A
    operational current at AC-15
    ● at 230 V rated value 10 A
    ● at 400 V rated value 3 A
    ● at 690 V rated value 1 A
    operational current at 1 current path at DC-12
    ● at 24 V rated value 6 A
    ● at 110 V rated value 3 A
    ● at 220 V rated value 1 A
    operational current with 2 current paths in series at DC-12
    ● at 24 V rated value 6 A
    ● at 110 V rated value 4 A
    ● at 220 V rated value 2 A
    operational current with 3 current paths in series at DC-12
    ● at 24 V rated value 6 A
    ● at 110 V rated value 6 A
    ● at 220 V rated value 3.6 A
    operating frequency at DC-12 maximum 1 000 1/h
    operational current at 1 current path at DC-13
    ● at 24 V rated value 6 A
    ● at 110 V rated value 1 A
    ● at 220 V rated value 0.3 A
    operational current with 2 current paths in series at DC-13
    ● at 24 V rated value 6 A
    ● at 110 V rated value 1.3 A
    ● at 220 V rated value 0.9 A
    operational current with 3 current paths in series at DC-13
    ● at 24 V rated value 6 A
    ● at 110 V rated value 3 A
    ● at 220 V rated value 1.2 A
    operating frequency at DC-13 maximum 1 000 1/h
    contact reliability of auxiliary contacts 1 faulty switching per 100 million (17 V, 1 mA)
    Short-circuit protection
    design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V C characteristic: 6 A; 0.4 kA
    design of the fuse link for short-circuit protection of the auxiliary switch required fuse gL/gG: 10 A
    Installation/ mounting/ dimensions
    mounting position +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
    fastening method screw and snap-on mounting onto 35 mm DIN rail
    height 57.5 mm
    width 45 mm
    depth 73 mm
    Connections/ Terminals
    type of electrical connection for auxiliary and control circuit screw-type terminals
    type of connectable conductor cross-sections
    ● for auxiliary contacts
    — solid or stranded 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
    — finely stranded with core end processing 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
    ● for AWG cables for auxiliary contacts 2x (20 ... 16), 2x (18 ... 14), 2x 12
    Safety related data
    product function positively driven operation according to IEC 60947-5-1 Yes
    Electrical Safety
    protection class IP on the front according to IEC 60529 IP20
    touch protection on the front according to IEC 60529 finger-safe, for vertical contact from the front
    Approvals Certificates
    General Product Approval Maritime application other
    Environment
    Further information
    3RH6131-1BB40
    3RH6131-1BB40
    3RH6131-1BB40
    last modified: 4/4/2026
    Date
    4/6/2026
    Subject to change without notice
    © Copyright Siemens 2026
